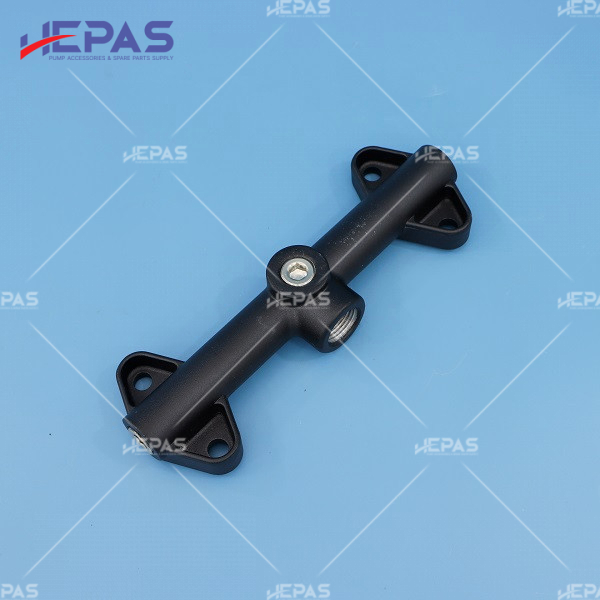

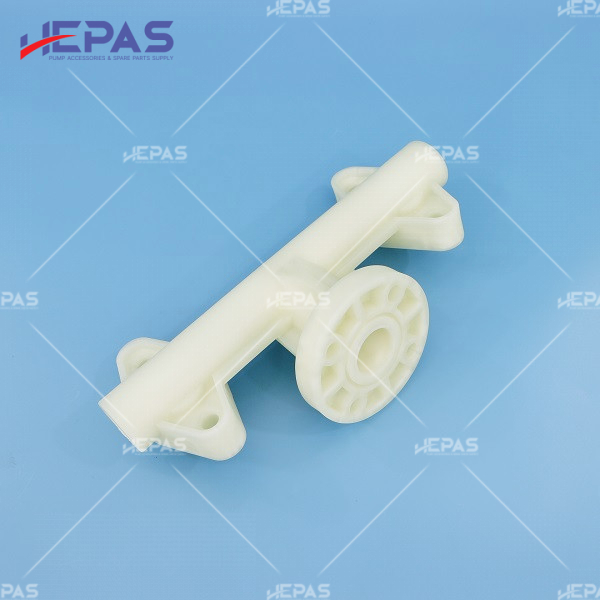

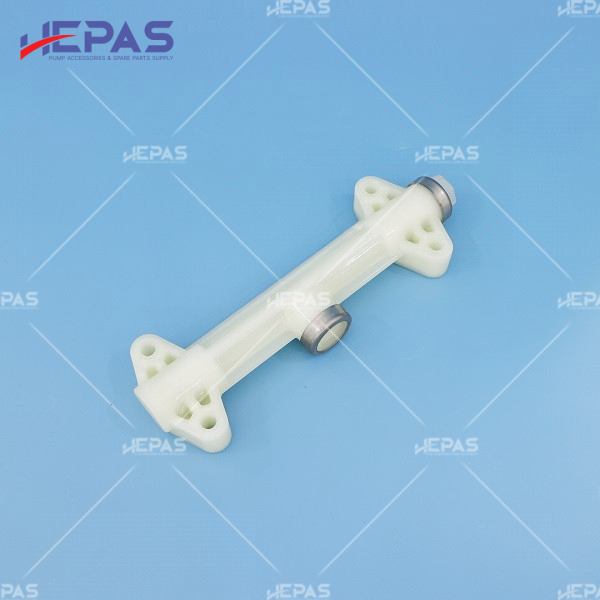

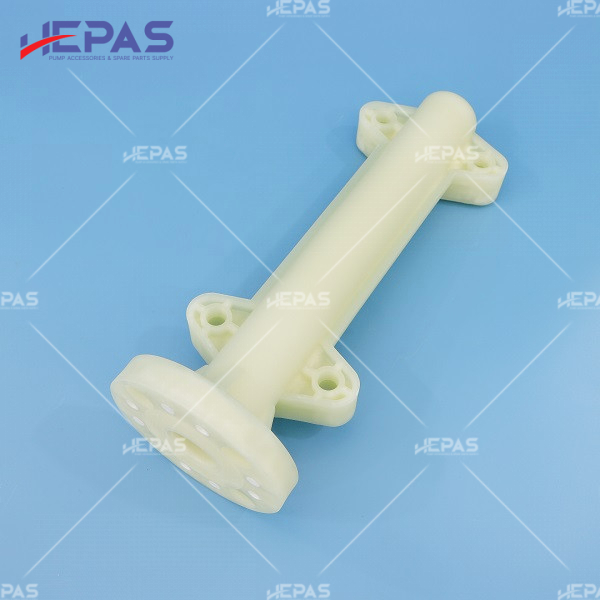

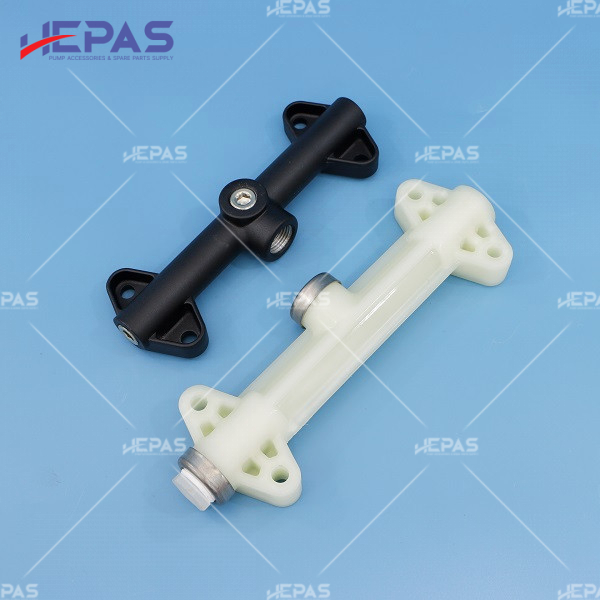

The suction and discharge manifold is a crucial component in diaphragm pump systems, responsible for connecting the pump’s inlet and outlet pipes. This ensures a continuous and stable flow of liquid throughout the pumping process. Typically made from materials that can withstand corrosion, high pressure, and temperature, these industrial pump manifolds ensure the pump’s longevity and performance under demanding conditions.
Operating Principles of Suction and Discharge Manifolds
The suction and discharge manifolds play an integral role in the pump’s operation by effectively channeling liquids through the diaphragm. As the pump operates, the diaphragm moves, creating pressure and vacuum, which helps draw liquid into the system through the suction manifold and expels it via the manifold discharge. Given the high pressures involved, particularly in applications involving high flow rates or viscous liquids, these manifolds must be durable and reliable.
Functions of the Suction and Discharge Manifold
- Connection: Provides a secure connection between the diaphragm pump and the piping system, ensuring no fluid leakage.
- Flow Adjustment: Certain manifold designs allow for flow regulation, offering flexibility in managing fluid throughput.
- Pump Protection: Shields the pump from external factors such as sudden pressure surges or contaminants.
Materials Used in Manifold Construction
- Aluminum: Lightweight and easy to machine, but offers moderate corrosion resistance. Suitable for less severe operating conditions.
- Cast Iron: Highly durable and capable of withstanding high pressure, ideal for heavy-duty industrial applications.
- Stainless Steel: Excellent corrosion resistance and heat tolerance, making it perfect for use in harsh environments such as the food and chemical industries.
- Engineering Plastics: Materials like PVC, PP, and PVDF offer good corrosion resistance, lightweight properties, and ease of fabrication, making them popular in chemical handling applications.
Installation and Maintenance Considerations
Given the importance of the replacement manifold in diaphragm pump systems, proper selection and maintenance are key to maximizing pump efficiency and lifespan.
- Material selection should align with the properties of the pumped fluid, operating temperature, and surrounding environment.
- Ensure the manifold size matches the pump and piping dimensions.
- Inspect all parts for signs of damage prior to installation, and follow OEM guidelines to ensure proper sealing and avoid leaks.
- Perform routine inspections and maintenance to detect potential issues early.
- Monitor system pressure to avoid exceeding the operational limits, which could damage the OEM replacement manifold.
Elbows: Essential Connector in Pump Systems
In complex pump systems, elbows are essential for altering flow direction within the piping network. These fittings allow for more compact and efficient system design by enabling flexible routing of pipes, particularly when space is limited or directional changes are required.
Elbows are typically used to connect pipes to the manifold discharge or suction manifold, forming a complete and functional piping system. Beyond simply altering flow direction, elbows also help absorb vibrations from the pump, protecting the piping and other equipment from potential damage.
Available in various sizes and constructed from a wide range of materials, including cast iron, stainless steel, and PVC, elbows can be tailored to the specific requirements of each application, ensuring the overall system operates smoothly.
Choosing Products from Hepas
Hepas offers a wide range of high-quality industrial pump manifolds that meet the stringent standards of leading brands such as Aro, Sandpiper, and Wilden. Our products ensure the smooth operation of your pumping systems.
With competitive pricing, fast delivery, and a team of experienced technicians, Hepas is your trusted partner.
Contact us for expert advice and support regarding replacement parts for industrial pumps.
