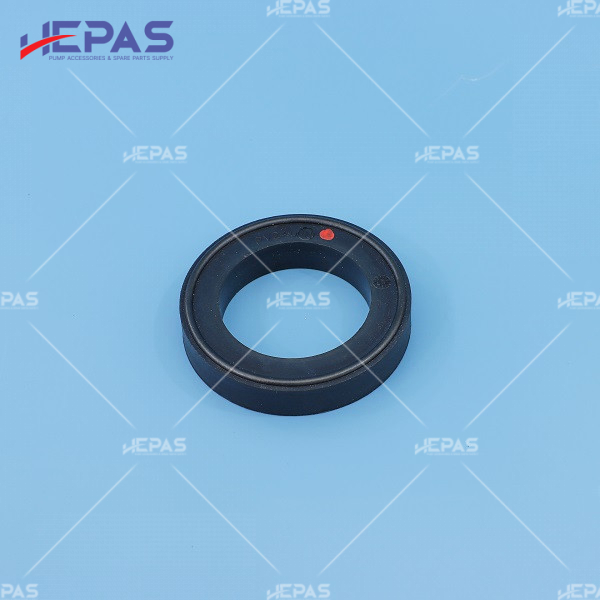

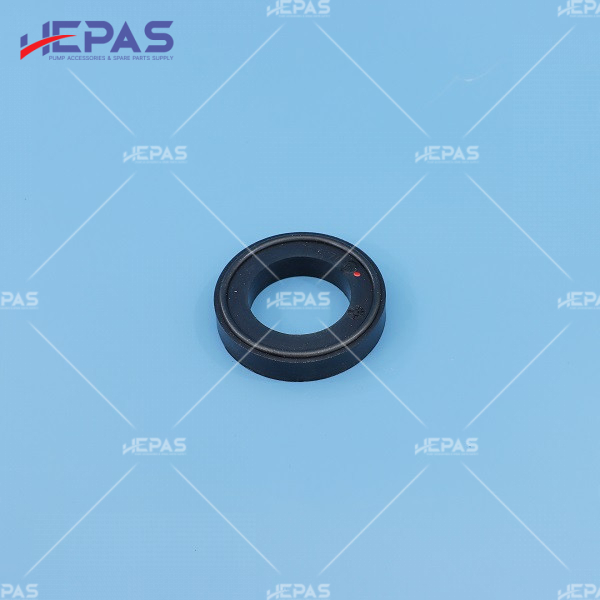

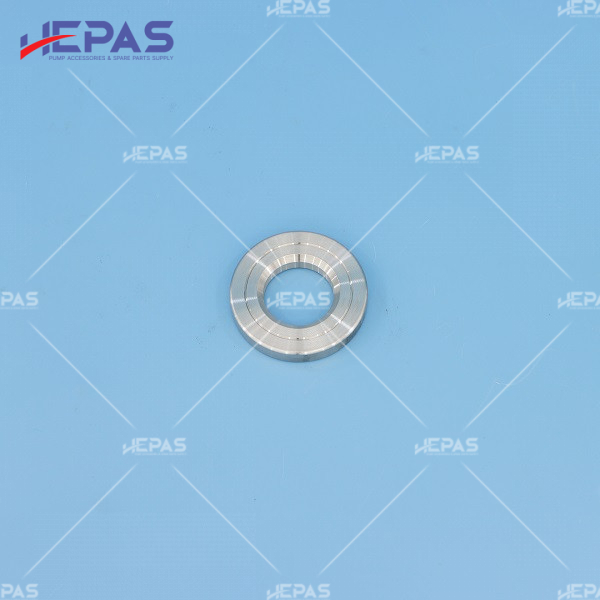

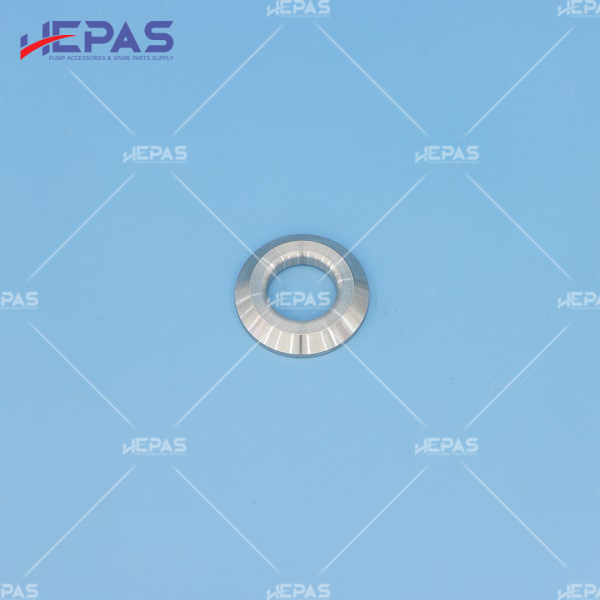

Seat Ball
The seat ball is a critical component within the structure of a pneumatic diaphragm pump, designed to securely hold the seat check valve in the correct position, ensuring efficient opening and closing functionality of the valve. This component is typically manufactured from durable materials capable of withstanding pressure and corrosion, thus guaranteeing reliability during pump operation.
Functionality of the Seat Ball
Flow Control: The seat ball allows the ball check valve to move freely, enabling the opening or closing of fluid flow as needed.
Leak Prevention: The design of the seat ball ensures that no fluid leaks out during the operation of the pump.
Performance Optimization: The seat ball helps optimize the pump’s performance by minimizing pressure losses and enhancing the stable operation of the system.
Materials Used for Seat Balls
The selection of materials for seat balls depends on the specific requirements of the pumping application, such as the fluid environment, temperature, and corrosion resistance. Below is a brief overview of the seat ball materials provided by Hepas, along with their characteristics and applications:
– Carbon Steel: Offers high mechanical strength and excellent pressure resistance. Commonly used in applications requiring hardness and strength, though it has lower corrosion resistance compared to stainless steel.
– Aluminum: Lightweight and easy to machine, with moderate corrosion resistance. Utilized in applications demanding a lightweight solution with reasonable durability, such as in paint, oil, and gas industries.
– Polyethylene: A thermoplastic with good abrasion and chemical resistance. Typically used in applications involving mildly corrosive liquids.
– PTFE (Polytetrafluoroethylene): Exhibits exceptional chemical resistance and high-temperature tolerance. Suitable for pumping applications involving highly corrosive liquids such as acids and bases.
– PVDF (Polyvinylidene Fluoride): A thermoplastic with robust chemical resistance and good thermal stability. Commonly used in pumping applications for highly corrosive liquids and in extreme temperature conditions.
– Nylon: Features high mechanical strength, good abrasion resistance, and moderate oil and chemical resistance. Often employed in pumping applications related to oils or fuels.
– Polypropylene: Resistant to a wide range of chemicals and possesses good strength. Frequently used in industrial liquid pumping applications with moderate corrosion levels.
– Buna-N (Nitrile): Offers good oil and fuel resistance but is less capable of handling chemicals and temperatures compared to PTFE. Commonly used in oil and fuel-related applications.
– Viton (FKM): Highly resistant to heat and chemicals, particularly aromatic hydrocarbons and chlorinated substances. Suitable for applications involving high temperatures and highly corrosive liquids.
– EPDM (Ethylene Propylene Diene Monomer): Exhibits good chemical resistance, especially with dilute acids and bases. Ideal for applications in low-temperature environments where resistance to water-based solutions is required.
– Neoprene (CR): Provides excellent abrasion resistance and can withstand weather conditions. Suitable for pumping applications involving water, slurry, and non-oily solutions.

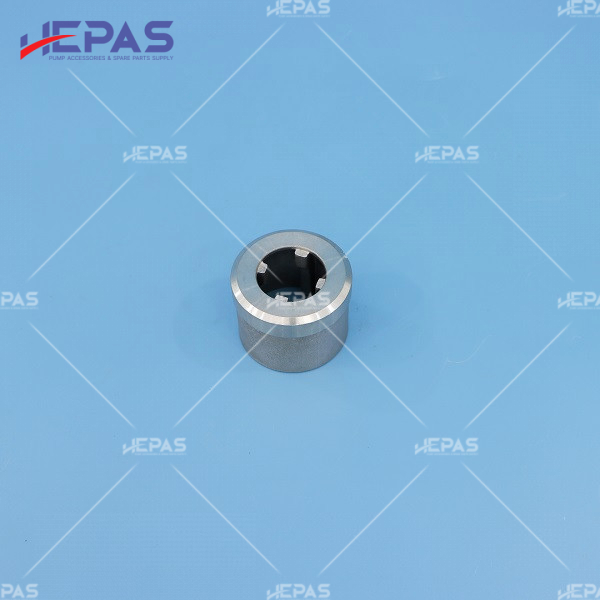

Ball Cage
The ball cage is a crucial component in diaphragm pumps, serving the dual purpose of guiding and supporting the pump’s rotating shaft. It is engineered to ensure smooth, quiet, and efficient operation of the pump. The ball cage is designed to hold the ball check valve in the correct position, allowing it to function properly and maintain stable flow and pressure during pumping.
Functions of the Ball Cage
Maintaining Pump Performance: The ball cage plays a vital role in ensuring the precise movement of the ball within the ball valve. As the pump operates, the ball moves up and down to open and close the valve, controlling the flow of fluid through the pump chambers. The ball cage keeps the ball aligned in its pathway, preventing issues such as ball jamming or incomplete sealing, which can lead to leaks or reduced pump efficiency.
Extending Pump Lifespan: By keeping the ball in the correct position and ensuring smooth operation, the ball cage helps reduce wear and tear on other components within the pump, thereby prolonging the lifespan of the equipment.
Ensuring Safety: The ball cage helps prevent potential issues such as fluid leaks or pressure anomalies, contributing to safer system operation.
Reducing Noise: When the ball valve moves accurately and operates smoothly within the ball cage, it minimizes excessive impact and unnecessary vibrations, significantly reducing noise generated during the pump’s operation.
Materials for Ball Cages
Depending on the working conditions and specific requirements of each application, different types of ball cages may be selected. Below are some commonly used materials for ball cages:
– PVDF (Polyvinylidene Fluoride): PVDF ball cages stand out for their excellent thermal and chemical resistance, along with high durability. These properties make PVDF suitable for use in harsh environments such as the chemical and food industries, where pumps are exposed to corrosive substances and high temperatures.
– Nylon: Nylon ball cages offer good elasticity, which helps reduce noise and impacts during operation. They also exhibit resistance to various chemicals. Due to these advantages, nylon is frequently used in high-pressure applications, such as in the food processing and water industries.
– Polypropylene: Polypropylene ball cages are highly flexible, chemically resistant, and cost-effective. They are typically chosen for applications that do not require extremely high chemical resistance, such as in the water and light chemical industries.
Considerations When Selecting Replacement Ball Seats and Ball Cages
Choosing the right ball seats and ball cages is crucial for ensuring the performance and longevity of diaphragm pumps. By carefully considering the following factors, you can select the most suitable products for your pumping system:
– Selecting Compatible Materials: It is essential to choose materials that are compatible with the fluid the pump will be transporting. If the fluid is corrosive or at high temperatures, selecting materials that can withstand these conditions is necessary to ensure safety and optimal performance.
– Environmental Conditions (Pressure & Temperature): Check the pressure and temperature parameters during the pump’s operation. The ball cage and ball seat must be capable of withstanding harsh conditions without sustaining damage. A suitable choice will help prevent failures and extend the lifespan of the equipment.
– Proper Sizing for the Ball Valve: The dimensions of the ball cage and ball seat must be compatible with the ball valve in the pump. Incorrect installation can lead to leaks or malfunctions, reducing efficiency and increasing repair costs. Measuring and verifying dimensions before purchase is critical.
– Durability & Corrosion Resistance: The ball cage and ball seat should possess high durability and corrosion resistance to operate effectively over extended periods. Materials with good wear resistance can minimize the need for frequent replacements and reduce maintenance costs. Ensure that you select products with clearly defined specifications regarding durability to meet your usage requirements.
Choosing Products from Hepas
Hepas offers a wide range of high-quality industrial pump seats and ball cages that meet the stringent standards of leading brands such as Aro, Sandpiper, and Wilden. Our products ensure smooth operation for your pumping systems. With competitive pricing, fast delivery, and a team of experienced technicians, Hepas is your trusted partner.
Contact us for expert advice and support regarding replacement parts for pump seats, OEM pump mechanical seals, and other seal components for industrial pumps. Whether you need assistance with pump valve seat maintenance or are looking for replacement valve seats for pumps, we are here to help.
